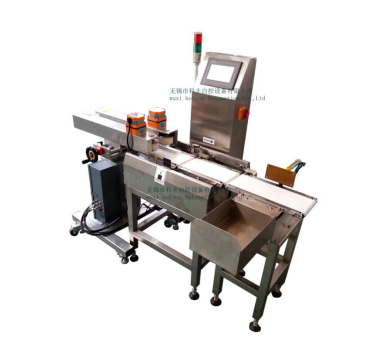

Brief instruction: LCS-3000DJ dynamic weight measuring scale is specially designed for bottled and canned goods to detect the weight of products on the production line by high-speed dynamic weight reading. It can accurately detect the heavy and heavy products in the continuous production line, and carry out the control of up-down line discrimination or automatic weight sorting accordingly. Packaging products are returned to the original conveyor belt by weight checking and weighing, rejection of unqualified products (or alarm shutdown), and have the functions of classifying and counting the products according to the settings. It can be used for a long time, and its accuracy is guaranteed. It does not need to be calibrated every day.

Product feature:

Static and dynamic calibration to eliminate the impact of dynamic weighing

Conveyor speed adjustable

Humanized function of automatic zero tracking function

Store 1 million pieces of data, data reports, traceable queries, support U disk everywhere, display units and reports are G units.

Provide RS485 communication interface and link with Party A''s computer

Output signal control rejection device (cylinder solenoid valve), output start-stop signal control input conveyor belt

Suitable industry: Bottling or canning industries requiring dynamic weight-checking.

Performance parameter:

Testing range: 500g～3000g

Inspection speed: 80-120 pieces per minute (up to 150 pieces per minute, depending on the forward conveying mode, product length and dynamic accuracy requirements, and to ensure that the distance between products before weighing is greater than the length of weighing table)

Testing items: small boxes or small bags

Maximum weighing: 3kg

Indexing value: 0.2g

Dynamic accuracy: The detection accuracy depends on the use environment, the weight and length of the product, and the speed of passage. It varies with the detection object.

Belt speed required: 24-32 m/min (maximum 40 m/min)

Conveying direction: from left to right (operator facing instrument)

Distance between adjacent product centers: 20cm (equal or sufficient distance between products when they enter the weight detector)

Relative humidity: ≤90RH%(no condensation)

Suitable temperature: ～10℃～45℃;

Control power supply: AC220V(﹣15%/+10%)/50HZ(±10%)

Power supply: AC380V(﹣15%/+10%)/50HZ(±10%)

Power: about 1KW

Pressure: 0.4MPa～0.6MPa

Air consumption: 0.3m3/h

This product contains removal device
